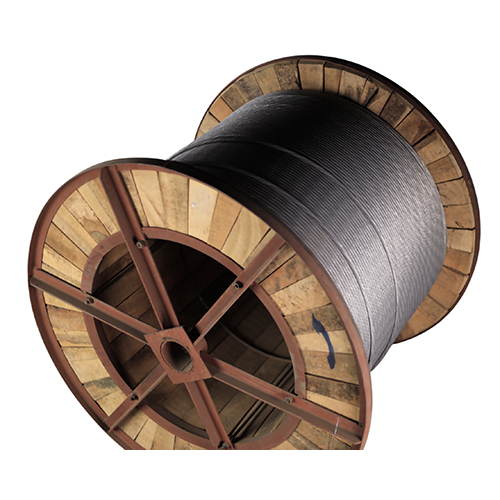

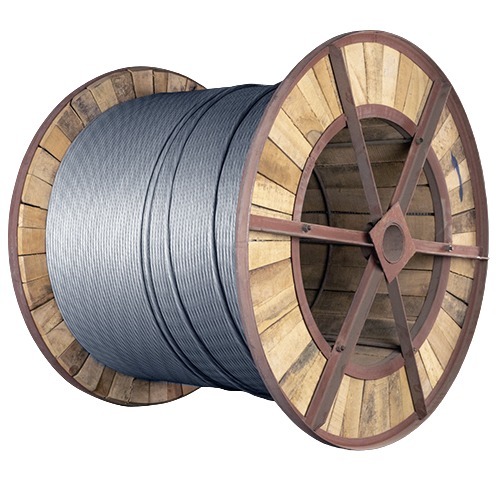

Optical Ground Wire

Name: Optical Ground Wire
Brand: SYSTEMATIC INDUSTRIES LIMITED
Price: 170 INR
Availability: InStock

Price 170 INR/ Meter

Get a Price/Quote

Optical Ground Wire Specification

Connector Type
Optical Splice Closure/Adapters

Conductor Type
Stranded

Temperature
-40C to +85C

No Of Core
12-48 Fiber Cores

Cable Length
Up to 6,000 m continuous roll

Product Type
Optical Ground Wire (OPGW)

Material
Aluminum Alloy and Steel

Function
Data Transmission and Power Line Protection

Usage
Telecommunications and Power Distribution Lines

Voltage Surge
High Resistance to Voltage Surges

Frequency (MHz)
DC to 60 Hz (for grounding function), Fiber supports wide range

Rated Voltage
Up to 220 kV

Rated Current
Supports up to 800 A (as ground wire)

Cable Capacity
Up to 48 Optical Fibers

Insulation Material
Fiber Optical Coating, No External Insulation

Conductor Material
Aluminum-Clad Steel

Length
Customized per project (typically in reels of 2,000 m or more)

Size
Diameter ranges from 9 mm to 20 mm

Color
Grey Metallic

Diameter
Approx. 9-20 mm

Application
Transmission Line Communication and Lightning Protection

Short Circuit Current Capacity
Up to 40 kA/0.25 sec

Minimum Bending Radius
20x Cable Diameter

Optical Attenuation
0.35 dB/km at 1310 nm

Armoring
Aluminum Alloy wires

Waterproof Design
Yes, water-blocking material included

Packaging
Steel Drum

UV Resistance
Yes

Fiber Type
Single-mode or Multi-mode

Design Life
Over 25 years

Tensile Strength
Up to 70 kN

Installation Method
Aerial (Overhead Power Lines)

Optical Ground Wire Trade Information

Minimum Order Quantity
10 Meter

Supply Ability
500 Per Month

Delivery Time
7 Days

Optical Ground Wire About

Discover the crowning choice in transmission line communication-the Optical Ground Wire (OPGW). Crafted from crackerjack aluminum alloy and steel, this robust cable features the finest waterproof design and superior UV resistance. Supporting up to 48 optical fibers, it excels in both single-mode and multi-mode data transmission while offering up to 70 kN tensile strength and 40 kA short circuit endurance. With a stellar design life of 25+ years, rated for up to 220 kV and 800 A, OPGW is in demand for power distribution and telecommunications. Grab yours and reserve premium capacity for your network projects!

Versatile Performance & Competitive Edge

OPGW is engineered for installation on overhead power lines, making it ideal for telecommunications and power distribution. The cable boasts outstanding features such as high tensile strength, exceptional optical attenuation, and aluminum alloy armoring. Its design offers high resistance to voltage surges and extends protection against lightning strikes. Lightweight yet durable, this cable ensures reliable data transfer and power line safeguarding, establishing itself as the finest solution for modern infrastructure demands.

Sample Availability, Export, and Market Presence

Samples of OPGW are available to streamline goods transport and facilitate project evaluation before placing a full order. With prompt arrival and competitive list prices, the product serves a global clientele across major export markets, including Asia, Africa, and Europe, as well as India's main domestic sectors. Reliable supply ensures that manufacturers, suppliers, and exporters can fulfill large-scale infrastructure requirements with confidence and efficiency.

FAQ's of Optical Ground Wire:

Q: How is Optical Ground Wire typically installed on power lines?

A: Optical Ground Wire (OPGW) is designed for aerial installation along overhead power lines, combining data transmission with grounding and lightning protection. It is typically strung between pylons using standard cable stringing techniques and supporting hardware.

Q: What are the main advantages of using OPGW in transmission networks?

A: OPGW offers simultaneous data transfer and power line protection. It provides high tensile strength, outstanding short circuit current capacity, water-blocking features, UV resistance, and a long service life, making it an efficient and cost-effective solution for utility networks.

Q: Where can this Optical Ground Wire be used?

A: This cable is suitable for telecommunications and power distribution lines, particularly in environments requiring high voltage surge resistance and reliable lightning protection. Its robust design is ideal for new installations or upgrades on high-voltage transmission lines.

Q: What is the process for customizing OPGW cable length and fiber count?

A: Customers can reserve custom orders specifying cable lengths-typically up to 6,000 meters per roll-and fiber core counts ranging from 12 to 48, tailored to the demands of each project and shipped in steel drums for safe arrival and transport.

Q: When should you consider choosing single-mode versus multi-mode OPGW?

A: Single-mode optical ground wire is ideal for long-distance, high-capacity communications, while multi-mode versions are suitable for shorter distances or local transmission. Selection depends on network design and application requirements.

Q: How does OPGW ensure protection against lightning and voltage surges?

A: The cable integrates aluminum alloy armoring and stranded aluminum-clad steel conductors, designed to endure high fault currents and provide a low-resistance path for lightning-induced surges, thereby safeguarding transmission lines.
